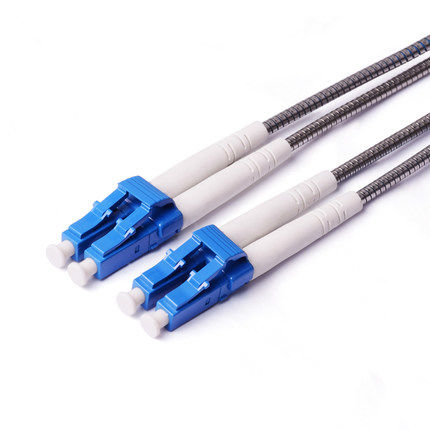

Outdoor 5G telecom use CPRI armored fiber patch cable for Huawei ZTE

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.102363
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   18.5
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 1,850
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Outdoor 5G telecom use CPRI armored cable SM-G657B3 fiber OFNP jacket

    Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com


    Outdoor 5G telecom use CPRI armored cable is used as: 3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX,
    BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 7.0mm 2 Cores with protected branch.
    Outdoor waterproof fiber optic connector J599 applies tri-start thread and five-key positioning, it's anti-vibration and wrongly plugging can be avoided. Made with stainless steel 316L, it's featured as high-density, anti-electromagnetic shielding, loss insertion loss, high reliability, and easy to install with removable parts. And it's also water/ dust proof, and anti-corrosion.

    It's mainly used in ocean communication, airborne communication, military, and very harsh environments like extremely acid, hydrochloric and humid. J599-MPO 12 & 24 cores for choice .

    Features

    1, Good mechanical and environmental characteristics;

    2, Flame retardant characteristics meet the requirements of relevant standards;

    3, The mechanical characteristics of jacket meet the requirements of relevant standards;

    4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

    5, Meet various requirements of market and clients

    Designed to meet 150 N cable retention
    Designed to meet IP67
    LC interface

    Single- and Multimode
    Adapter footprint : 36mm x 36mm
    Bayonet style locking
    Duplex LC interconnect MM or SM
    No tools required
    Operating temperature : -40ºC to +70ºC
    Mating durability min : 100 cycles.

    Cable Parameters

    Fiber Count

    Cable Dimension

    mm

    Cable Weight

    kg/km

    Tensile

    N

    Crush

    N/100mm

    Min. Bend Radius

    mm

    Range of Temperature

    Long TermShort TermLong TermShort TermDynamicStatic
    27.042.32004001100220020D10D-30-+70

    Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

    2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

    3. D is outer diameter of the round cable;


    Features And Benefits:
    1. Provides superior weather resistance for FTTA and other outdoor applications.
    2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
    3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
    4. Can be installs without special tooling
    5. Threaded style coupling
    6. Provides bend protection for installation and long term use

    7. Faster network roll out and customer installations
    8. 100% tested assemblies built in a controlled environment
    9. Lower cost deployment by utilizing plug and play solutions
    10. Custom built solutions with quick turnaround times

    Outdoor 5G telecom use CPRI armored fiber patch cable for Huawei ZTE, wait for your inquriy.

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
