Fullaxs to LC Optical Patchcord

Fiber Optic FTTA IP67 Fullaxs-LC SM DX Optical Patchcord for Ericsson

In Stock. SKU.102195

$ 29.14

Mode* Single-mode: Single-mode; Multi-mode

Length* 5m: 5m; 10m; 20m; 30m; 40m; 50m; 60m; 70m; 80m; 100m; 110m; 120m; 150mm; 200m; 300m

Quantity:

piece(s)

( Min. Order 100 )

Shipping:

$ 2,198.37

to United States Change

Estimated delivery time : 0-27 working days. See details

Total Price:

$ 2,914 ~~$ 2,914~~

Shipping calculated at checkout.

Weight:

1.00 KG

Package:

1000.00cm*1000.00cm*1000.00cm

Returns:

You May Also Like

Description
Specification
Download
Customer Reviews
Questions & Answers

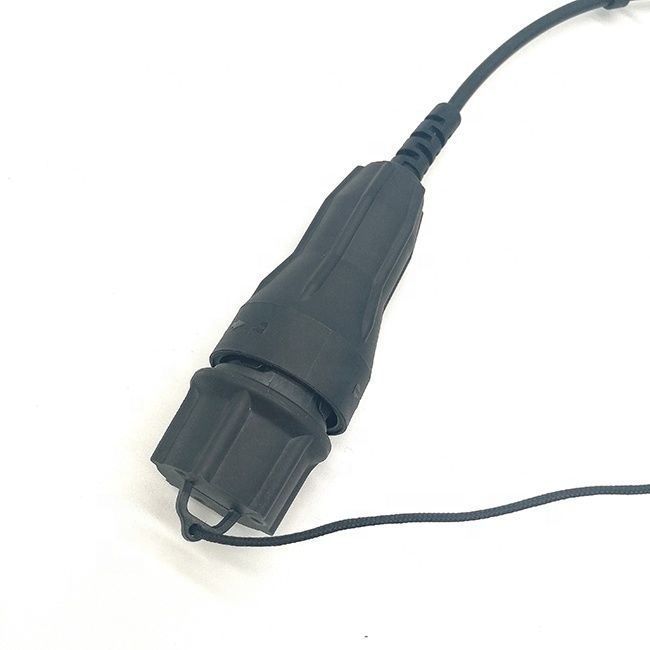

Fiber Optic FTTA IP67 Fullaxs-LC SM DX Optical Patchcord

Different length will be different price, kindly contact us for detail price and leadtime.

SOGOO TECHNOLOGY CO., LTD

Mob/Wechat: +86-150-1946-5365

Whatsapp Business: +852 66425118

E-mail: sales@sogootech.com

Website: www.sogootech.com

www.telecomscable.com

Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivitydesigns require rugged cable assemblies for outdoor use.For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.

For this specific application, the connector design will need to accommodate for a large tolerance in Z direction. Furthermore, the connector shell must allow for easy one handed mating. This LC outdoor connector sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.

Mechanical

Designed to meet 150 N cable retention
Designed to meet IP67
LC interface
Single- and Multimode
Adapter footprint : 36mm x 36mm
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40ºC to +70ºC
Mating durability min : 100 cycles.

Key Features

Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode
Water proof, dust proof and corrosion resistant.
Expansion to RJ45 and Power possible
Plug has tolerance free design,fully free floating on Z-axis
No cable buckling during or after installation.
Cost effective metal die cast bulkhead
Field installable version available

Features

* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

Why Choose Us:
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.

Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.

Fiber Optic FTTA IP67 Fullaxs-LC SM DX Optical Patchcord is waiting for your inquiry.

Customer Reviews

Write a Review
Average Rating:

based on 0 reviews
0%

0%

0%

0%

0%

All Reviews (0)

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
See All Reviews

No data

Questions & Answers
Ask a Question

No data

Color	Black
Cores	2 cores
Connector	LC
Opotion connector	SC-ST-FC
Armored	Branch
Corrugated Pipe	No, if need, pls check price with sales
Armored Fiber cable	Yes, branch armored
Dia of Fiber cable	φ5.0mm;φ7.0mm
Application	Fiber to the Antenna
Weight	1 kg
Package	1000.00cm1000.00cm1000.00cm

Fiber Optic FTTA IP67 Fullaxs-LC SM DX Optical Patchcord for Ericsson
