Different length will be different price, kindly contact us for detail price and leadtime.

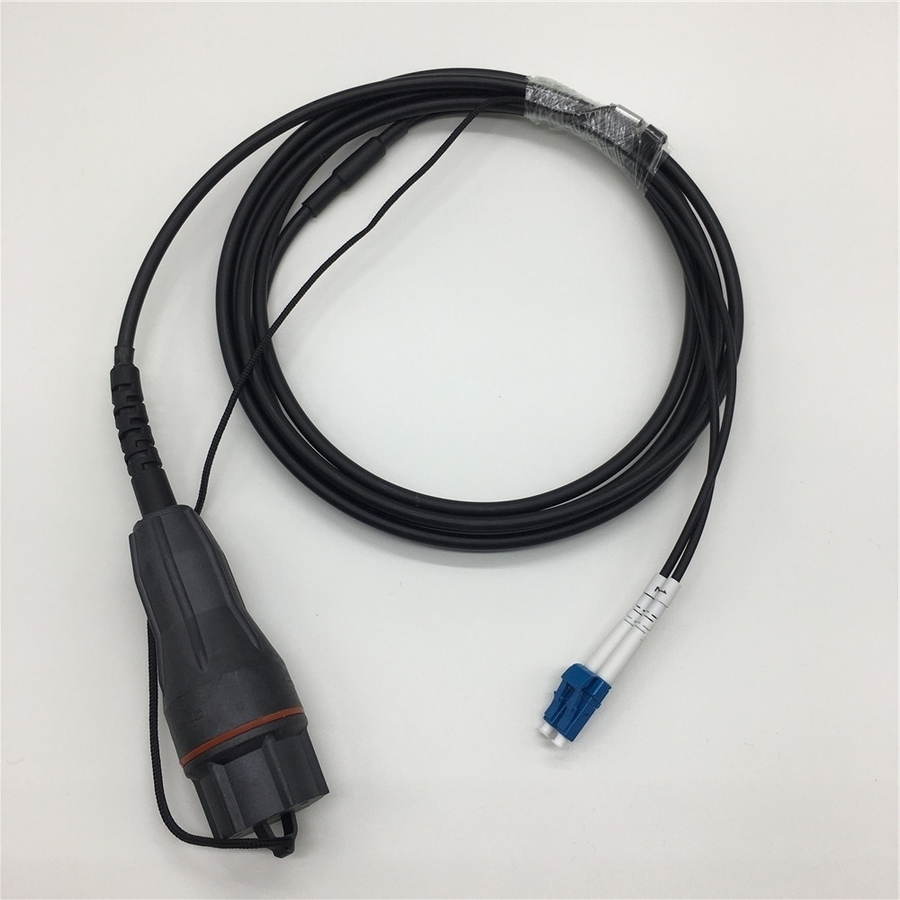

For Erisson 2F LC(FullAXS)-LC SM, 150 m RPM 253 1610/150M Field Optical Cable
The FullAXS connector system meets this requirement by allowing for a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers. The FullAXS connector can be designed for either single mode or multimode optical transmission applications.
Designed to offer a versatile platform, the new product has the capacity to expand to RJ45 and power connectors and is available in a field-installable version with splice to suit any cable.
- Designed to meet 150 N cable retention
- Designed to meet IP67
- LC interface
- Single- and Multimode
- Adapter footprint : 36mm x 36mm
- Bayonet style locking
- Duplex LC interconnect MM or SM
- No tools required
- Operating temperature : -40ºC to 70ºC
- Mating durability min : 100 cycles.
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- Duplex LC interface
- Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and single mode
- Water proof, dust proof and corrosion resistant.
- Expansion to RJ45 and Power possible
- Plug has tolerance free design,fully free floating on Z-axis
- No cable buckling during or after installation.
- Cost effective metal die cast bulkhead
- Field installable version available
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
3G 4G base station used
Aerospace & Defence
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Why Choose Us:
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
They are customized fiber patch cord, so please contact with sales: email@example.com, whatsapp: 8615019465365 to double check the price and freight.
Ip67 FullAXS to LC duplex Jumper Fiber to the Antenna Outdoor Cable is waiting for your inquiry.
