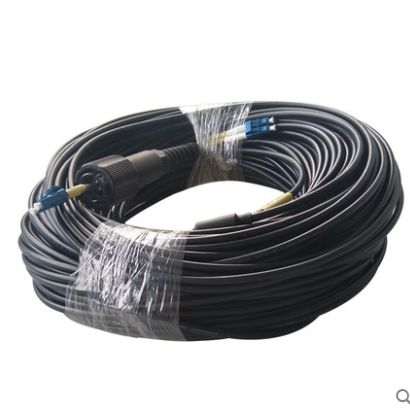

    Waterproof outdoor patch cord GYFJH /ODLC/PDLC- LC optic fiber patch cable

    PDLC Optical Cable Assembly Waterproof Outdoor Armoured Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dust-proof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.

    The PDLC Waterproof Assembly is used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    1. Standard Duplex LC connector, well connected with standard LC adapter
    2. Available Single mode and Multi-mode
    3. IP67 protection, salt-mist proof, humidity proof, dust proof
    4. Low insertion/return loss, steady optical transmitting.
    5. Light weight, waterproof, dust-proof, moisture proof, Metal hard housing.

    1. Widely used in FTTA & FTTH
    2. Used for 3G 4G base station
    3. BBU, RRU, RRH, LTE

    Connector Plug Structure

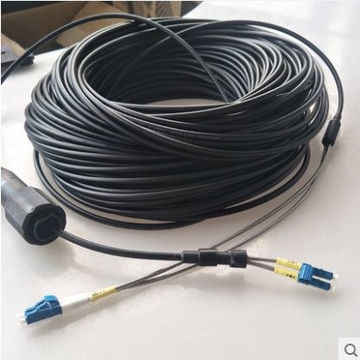

    Waterproof outdoor patch cord GYFJH /ODLC/PDLC- LC optic fiber patch cable

    PDLC Waterproof outdoor fiber cable specifications

    Insertion Loss≤0.3dB
    Mechanical life500cycles
    Working temperature-40°C~ 70°C
    Storage temperature-40°C~ 70°C
    Operating temperature-10°C~ 50°C
    Protection LevelIP67
    Tensile DataTensile between junction and fiber cable≥180N
    Out shell inflaming retardingUL94 V-0
    Out shell UvioresistantUL 746C
    AuthenticationMeet with RoHS

    1.1Cable Parameters

    Fiber CountCable Dimension
    Cable Weight
    Min. Bend Radius
    Long TermShort TermLong TermShort TermDynamicStatic
    27.042.32004001100220020D10D-30- 70
    Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
    2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
    3. D is outer diameter of the round cable;

    1.2 Cable Parameters

    Fiber Count 2 Fibers
    Fiber TypeSM G657A, or MM 50/125 or MM 62.5/125
    Simplex cableDiameter2.0mm±0.1mm
    ColorSM: Blue and Yellow
    MM: Orange and Grey
    Strength MemberKevlar
    Waterproof outdoor patch cord GYFJH /ODLC/PDLC- LC optic fiber patch cable

    They are customized fiber cable, so please contact with sales: info@sogootech.com, whatsapp: 8615019465365 to double check the price and freight.
  • Specification
    • Color Black
    • Cores 2 cores
    • Connector PDLC-ODLC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable 7mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
