  • UV Resistant Panyu ZA-RVVP 2x4mm2 2x6mm2 2x10mm2 Shield RRU Power Cable For ZTE Huawei tower, 300/500V CE approved

    Different size, different length will be different price, contact us for more infomation.

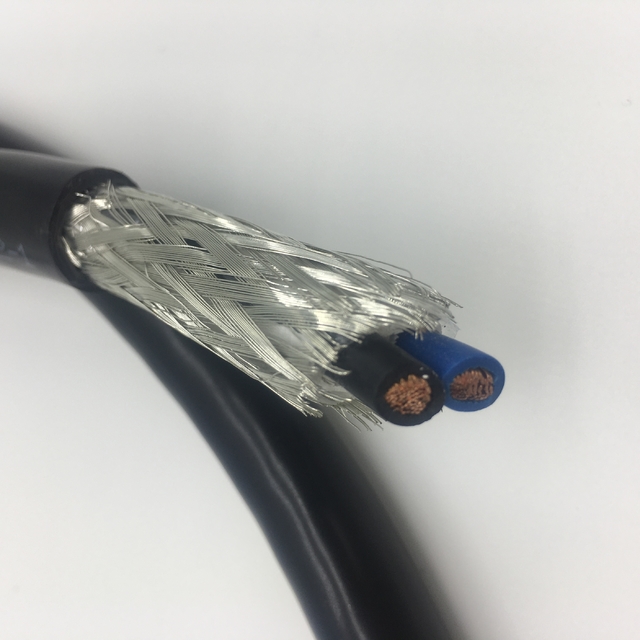

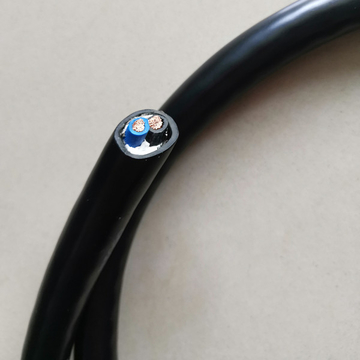

    UV Resistant Panyu ZA-RVVP 2x4mm2 2x6mm2 2x10mm2 Shield RRU Power Cable For ZTE Huawei tower

    Type:Insulated ZA-RVVP ZC-RVVP RVVP

    Application:Equipment, base station
    Conductor Material:Copper
    Conductor Type:Stranded
    Insulation Material:PVC
    Standard:IEC 60227, IEC60332-1

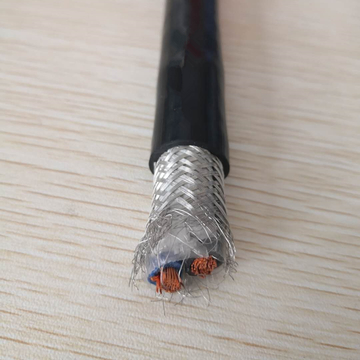

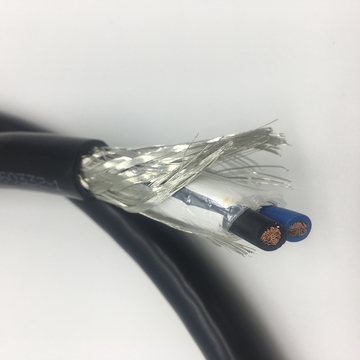

    Shield:Copper Wire Braid
    Conductor:Flexible Copper class5
    Jacket:ZA PVC
    Temperature range:90degree
    Size:2x4mm2, 2x6mm2, 2x10mm2, 2x16mm2
    Usage:Telecom cable RRU BBU
    Rated Voltage:300V ZA-RVVP
    Characteristics:DC Power Cable


    Marking
    6mm2ZA-RVVP 300/300V 2×6 mm2 (TCCAM) RoHS IEC60332-1 XXXXm CE
    Product Description
    Rated voltage(V)300/300&300/500
    Rated temperature(oC)-40~70
    Standard authenticationCE
    Flame retardanceA
    Cold resistanceMinimum laying temperature -20℃
    The minimum use of sheath is -40℃
    Cable used open air(Y/N)Y
    Main ref stdGB/T5023-2008 JB/T8734.5-2012
    Structure Unit(mm)
    Item sortStd limited
    Conductor materialAnnealed stranded copper
    AWG or sectionrefer to technical parameters
    Conductor structurerefer to technical parameters
    Insulation materialCold resistant PVC insulation
    Normal thickness of Insulationrefer to technical parameters
    Minimum thicknessrefer to technical parameters
    Insulation diameterrefer to technical parameters
    Braid materialCCAAT-15A
    Jacket materialPVC
    Normal thickness of Jacketrefer to technical parameters
    Minimum thicknessrefer to technical parameters
    Cable diameterrefer to technical parameters
    Braid density80%

    Electric characteristic

    Electric characteristic
    Item sortStd. limitedTest result
    The min insulation resistance, 70  (M Ω km).refer to technical parametersPass
    Dielectric Strength (kV/min)2.0kV/5minPass
    Max. DC resistance at 20 (Ω/km)refer to technical parametersPass
    Mechanical characteristic&Reliability
    Aging TestStd. limited/Testing
    Insulation property
    Before AgingTensile Strength(Mpa)≥10Pass
    Elongation(%)≥150Pass
    Insulation aging conditions80(±2)×168 hrs
    After AgingTensile strength rate of change(%) ±20Pass
    Elongation rate of change (%) ±20Pass
    sheath property
    Before AgingTensile Strength(Mpa)≥10Pass
    Elongation(%)≥150Pass
    Sheath aging conditions80(±2)×168 hrs
    After AgingTensile strength rate of change(%) ±20Pass
    Eelongation rate of change (%) ±20Pass
    Low-temperature impact-40±2 Pass
    Thermal Shock Test150(±2) * 1hPass
    Simulated outdoor testMeet UL1581 outdoor test



    RoHS

    RoHS
    ItemValue limited(ppm)Testing
    Pb800N.D
    Hg800N.D
    Cd70N.D
    Cr6+800N.D
    PBBs800N.D
    PBDEs800N.D

  • Specification
  • RRU shield power cable
    • ZA-RVVP 300/300V 2x6 mm2
    • (TCCAM) RoHS IEC60332-1
    • Outdoor Test; UV resistant.



    Trade termsCIF, DDU, EX-WORKS
    Minimum Order Quantity:1000m
    Unit Price:Negotiable

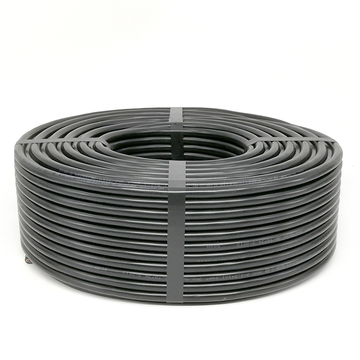

    Packaging Details:1000m/ Wooden Drum
    Delivery Time:1 days for samples, about 7-15 days for formal order
    Payment Terms:Western Union, Paypal,T/T
    Supply Ability:5000000m per month
    ShipmentSea, Air, Express
    PortShanghai, Ningbo, Shenzhen
