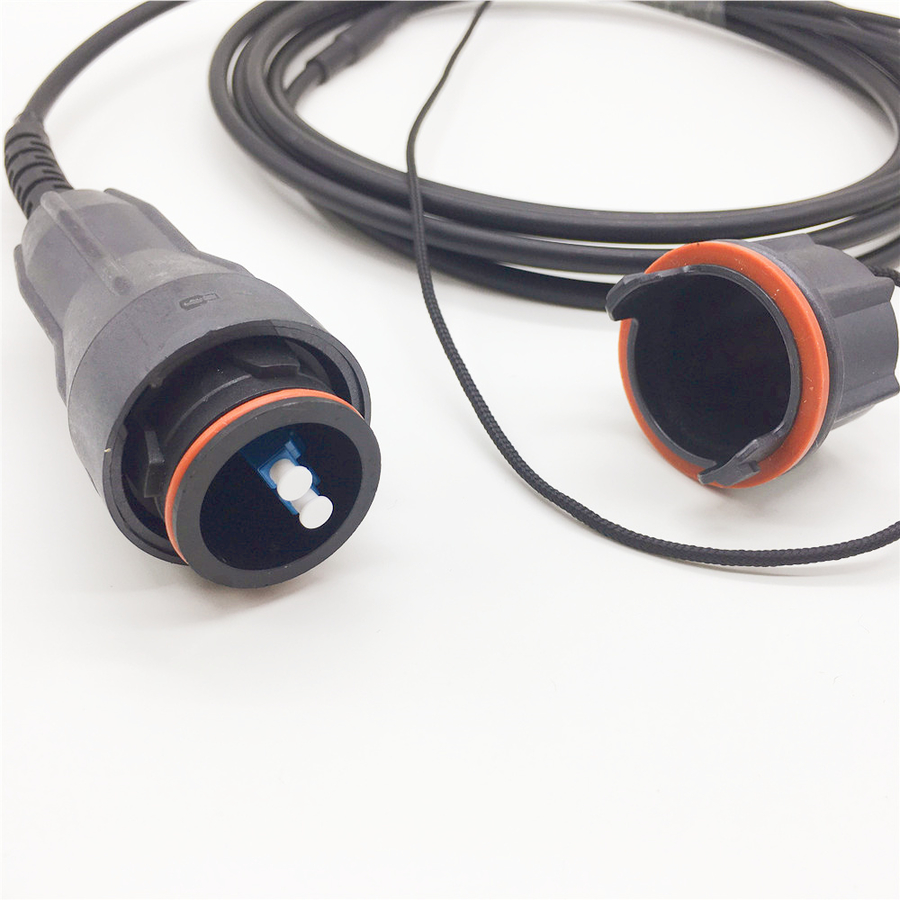

Tactical fiber cables with Waterproof PDLC / ODC connectors , CPRI patch cord for RRU

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.139978
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   18.5
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 1,850
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com

    Tactical fiber cables with Waterproof PDLC / ODC connectors , CPRI patch cord for BBU

    The ODC Connector together with Tactical fiber cables, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.

    The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.

    ODC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.


    Features

    Screwed locking mechanism, confirm the connection is long-term and reliable.
    Guide structure, can be installed blindly, simply and quickly.
    Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
    Compact appearance, robust and flexible.
    Sealing design through wall.

    Item
    Description
    Standard
    Cable Model
    GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
    Number Optic-cable Core
    2
    Weight Kg/km
    45.0
    Outside Dia. mm
    Φ7.0±0.2
    Outer Sheath
    material
    LSZH
    YD/T 1113-2001
    color
    BLACK
    thickness
    1mm
    Tight buffer
    material
    FRP
    Dia. mm
    Φ1.0±0.1
    Subunit
    Quantity(pcs)
    2
    Sheath Dia.
    Φ2±0.1mm
    Sheath Material & Color
    LSZH & yellow
    Reinforced core
    aramid fiber
    Mark Unit
    Differ A,B,C and D fiber within 10mm
    GB/T 6995.2
    Fiber core
    Fiber Type
    G.652D
    sheath color
    white
    Sheath material
    LSZH
    Out-Dia fiber for Tight layer
    0.90±0.05 mm
    Fiber specification
    9/125(G652D)
    Allowable Tension
    Short term ≥500N
    Long term ≥300N
    inflaming retarding Class
    Confirm to IEC60332-3C
    Mini Bending radius
    10D
    Fiber Cable Printing
    Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
    Working life
    ≥25years

    *all materials confirm to RoHS

    Features

    * IP65 protection, salt-mist proof
    * Easy, reliable and cost-effective installation
    * The connector of side-A is duplex LC, and side-B can be LC, SC or FC
    * Thread structure guarantees the trusted connection

    Applications:

    3G 4G base station used
    Aerospace & Defence
    Equipment diagnosis
    FO sensor
    TTA ,FTTP, FTTX,WIMAX
    BBU, RRU, RRH, LTE


    Look forward to your inquiry about our Tactical fiber cables with Waterproof PDLC / ODC connectors , CPRI patch cord for BBU .

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
