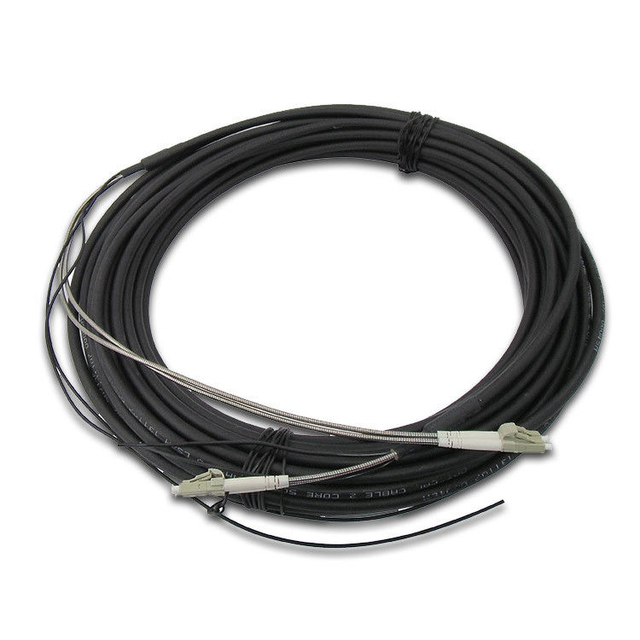

    Outdoor Waterproof FTTA Fiber Optic Patch Cord LSZH Jacket PDLC-DLC

    Outdoor Waterproof FTTA Fiber Optic Patch Cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm diameter, with water blocking aramid yarns and UV resistant black out jacket. DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.

    Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 5m, 10m, 20m, 30m, 40m, 50m, 70m, 100m, 150m, 200m... With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.

    Item
    Description
    Standard
    Cable Model
    GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
    Number Optic-cable Core
    2
    Weight Kg/km
    45.0
    Outside Dia. mm
    Φ7.0±0.2
    Outer Sheath
    material
    LSZH
    YD/T 1113-2001
    color
    BLACK
    thickness
    1mm
    Tight buffer
    material
    FRP
    Dia. mm
    Φ1.0±0.1
    Subunit
    Quantity(pcs)
    2
    Sheath Dia.
    Φ2±0.1mm
    Sheath Material & Color
    LSZH & yellow
    Reinforced core
    aramid fiber
    Mark Unit
    Differ A,B,C and D fiber within 10mm
    GB/T 6995.2
    Fiber core
    Fiber Type
    G.652D
    sheath color
    white
    Sheath material
    LSZH
    Out-Dia fiber for Tight layer
    0.90±0.05 mm
    Fiber specification
    9/125(G652D)
    Allowable Tension
    Short term ≥500N
    Long term ≥300N
    inflaming retarding Class
    Confirm to IEC60332-3C
    Mini Bending radius
    10D
    Fiber Cable Printing
    Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
    Working life
    ≥25years

    Features

    Applications:


    Look forward to your inquiry about our Outdoor Waterproof LSZH Jacket PDLC-DLC FTTA Fiber Optic Patch Cord.

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
