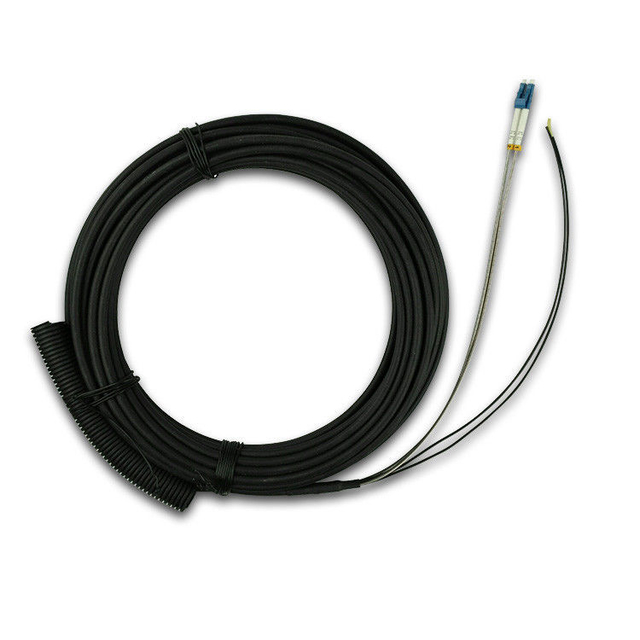

  • FTTA CPRI RRU RRH Fiber Optic Outdoor Cable Duplex LC to LC Patch Cord Jumper for 5G telecom base station

    Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com

    The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. Spring supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.

    Features:
    1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    2. Standard Duplex LC connector, well connected with standard LC adaptor
    3. Available Single mode and Multimode
    4. IP67 protection, salt-mist proof, humidity proof, dust proof
    5. Low insertion/return loss, steady optical transmitting.
    6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
    7. 500cycles Mechanical life

    8. Easily add/install jumper cables for a future expansion
    9. Factory-assembled cables for a fast on-site installation
    10. Flexibility with small bending radius and excellent cable routing properties
    11. Equipped with customer specific power and fiber-optic connectors

    Applications:
    1.Multi-purpose Outdoor.
    2.For connection between distribution box and RRH.
    3.Deployment in Remote Radio Head cell tower


    DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
    Item
    Description
    Standard
    Cable Model
    GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
    Number Optic-cable Core
    2
    Weight Kg/km
    45.0
    Outside Dia. mm
    Φ7.0±0.2
    Outer Sheath
    material
    LSZH
    YD/T 1113-2001
    color
    BLACK
    thickness
    1mm
    Tight buffer
    material
    FRP
    Dia. mm
    Φ1.0±0.1
    Subunit
    Quantity(pcs)
    2
    Sheath Dia.
    Φ2±0.1mm
    Sheath Material & Color
    LSZH & yellow
    Reinforced core
    aramid fiber
    Mark Unit
    Differ A,B,C and D fiber within 10mm
    GB/T 6995.2
    Fiber core
    Fiber Type
    G.652D
    sheath color
    white
    Sheath material
    LSZH
    Out-Dia fiber for Tight layer
    0.90±0.05 mm
    Fiber specification
    9/125(G652D)
    Allowable Tension
    Short term ≥500N
    Long term ≥300N
    inflaming retarding Class
    Confirm to IEC60332-3C
    Mini Bending radius
    10D
    Fiber Cable Printing
    Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
    Working life
    ≥25years

    *all materials confirm to RoHS

    Features

    * Easy, reliable and cost-effective installation
    * The connector of side-A is duplex LC, and side-B can be LC, SC or FC
    * Thread structure guarantees the trusted connection

    FTTA CPRI RRU RRH Fiber Optic Outdoor Cable Duplex LC to LC Patch Cord Jumper for 5G telecom base station, wait for your inquiry.

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
