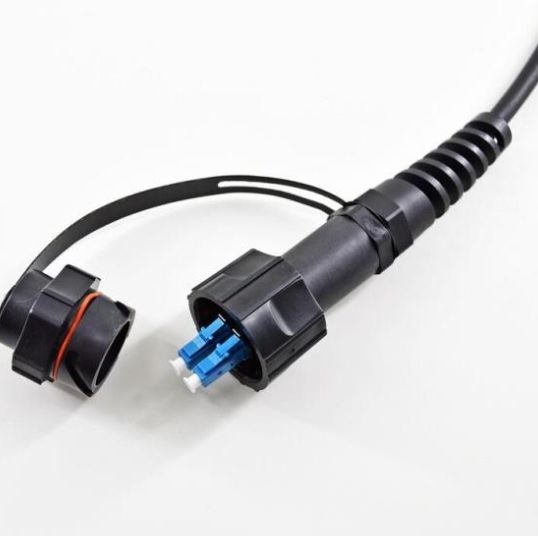

ODVA -LC Duplex IP67 Fiber Optic Cable patch cord for RRU(RRH) and Baseband unit

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.101868
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   68
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 34,000
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com


    ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use. Designated the LC Series, CONEC offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. SOGOO’s extensive ODVA-compliant product portfolio gives customers design flexibility, and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, SOGOO can provide cable and plug kit assembly services to deliver a complete FTTA systems interconnect solution.


    The water-resistant LC Series connectors provide increased protection from contamination and moisture in addition to
    mechanical stability, temperature resistance and vibration immunity. The connectors use OFNR (optical fiber nonconductive
    riser) breakout cables rated for outdoor usage. The IP67-rated LC Series connector’s features a 1/6th turn bayonet coupling
    for a fast and secure mate/unmated, even with gloved hands. The compact LC Series connectors are also compatible with
    industry standard cables and interconnect products. Connectivity solutions for single-mode, multi-mode and APC requirements are optional.Pre-terminated jumper cables, including cables suitable for outdoor and indoor use in standard lengths from 1 meter to 100 meters, are also included. Custom lengths are also available.


    Product Description


    Product Type

    Waterproof Cable

    Fiber Type

    Singlemode OS2 9/125

    Connector 1

    ODVA

    Connector2

    LC/ODVA

    Trunk Diameter

    7.0mm

    Branch Diameter

    3.0mm

    Insertion Loss

    ≤0.30dB

    Return Loss

    LC≥50dB,E2000APC≥60dB

    Storage Temperature

    -55°C-85°C

    Operating Temperature

    -40°C-85°C

    Cable Specification:

    Fiber Count

    Cable Dimension

    mm

    Cable Weight

    kg/km

    Tensile

    N

    Crush

    N/100mm

    Min. Bend Radius

    mm

    Range of Temperature

    Long Term

    Short Term

    Long Term

    Short Term

    Dynamic

    Static

    2

    7.0

    42.3

    200

    400

    1100

    2200

    20D

    10D

    -30-+70

    Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

    2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

    3. D is outer diameter of the round cable;


  • Specification
    • Color Black
    • Cores 2 cores
    • Connector PDLC-ODLC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable 7mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
