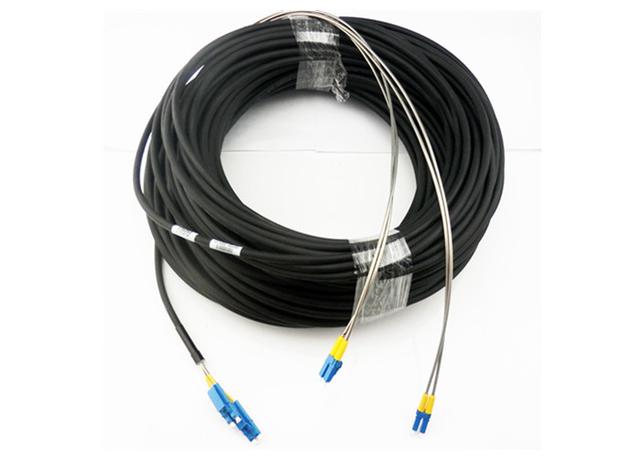

  • OEM Cpri Fiber Optic Cable / Ftta Fiber Optic Patch Cord With Duplex LC

    Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com


    The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. Spring supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.

    Features:
    1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    2. Standard Duplex LC connector, well connected with standard LC adaptor
    3. Available Single mode and Multimode
    4. IP67 protection, salt-mist proof, humidity proof, dust proof
    5. Low insertion/return loss, steady optical transmitting.
    6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
    7. 500cycles Mechanical life

    8. Easily add/install jumper cables for a future expansion
    9. Factory-assembled cables for a fast on-site installation
    10. Flexibility with small bending radius and excellent cable routing properties
    11. Equipped with customer specific power and fiber-optic connectors

    Applications:
    1.Multi-purpose Outdoor.
    2.For connection between distribution box and RRH.
    3.Deployment in Remote Radio Head cell tower

    GYFJH 7.0mm fiber cable:

    ItemData
    fiberSingle mode G.657A2
    Fiber diameter7.0mm
    Material & color for jacketLSZH black
    Tension memberAramid fiber
    Max. attenuation

    ≤ 0.4dB/km at 1310nm

    ≤0.3dB/km at 1550nm

    Tensile resistance(short term)500N(no breakage)
    Crush resistance(short term/long term)1000N/100mm
    inflaming retardingIEC 60332-3
    Temperature-40~+70°C
    UvioresistantPASS
    AuthenticationMeet with RoHS &UL

    LC Connectors:

    ItemData
    ConnectorLC, DLC, (PC/APC)
    Insertion Loss≤0.3dB (PC/APC)
    Return LossPC45dB, APC60dB
    Operating temperature-10°C~+50°C
    Working temperature-40°C~+70°C
    Mechanical life500cycles

    Features

    * IP65 protection, salt-mist proof
    * Easy, reliable and cost-effective installation
    * The connector of side-A is duplex LC, and side-B can be LC, SC or FC
    * Thread structure guarantees the trusted connection

    Applications:

    3G 4G base station used
    Aerospace & Defence
    Equipment diagnosis
    FO sensor
    TTA ,FTTP, FTTX,WIMAX
    BBU, RRU, RRH, LTE


    OEM Cpri Fiber Optic Cable / Ftta Fiber Optic Patch Cord With Duplex LC, look forward to your inquiry.

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
