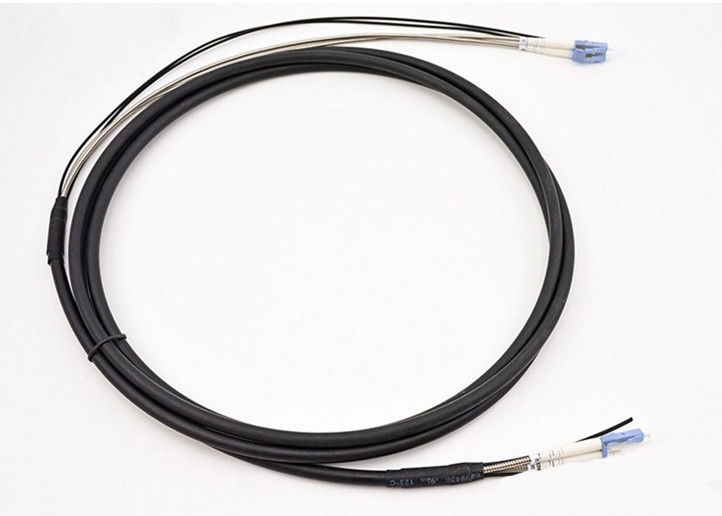

Outdoor PDLC IP67 PDLC to DLC ST FC single mode armored OS2 sfp Fiber Optic CPRI cable patch cord
Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com
Outdoor CPRI Fiber Optic Patch Cord for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities. Outdoor CPRI Fiber Optic Patch Cable, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.With the development of distributed antenna syatems(DAS), ODVA,PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
Typical Usages
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Typical Advantage
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
Performance Parameters
Connector End A Compact RRH/BBU Helix Cover Connector
End B DLC (duplex LC),or SC,FC,ST,MPO,MTP......
Fiber Core 2,4…12
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Item | Description | Standard |
Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | |
Number Optic-cable Core | 2 | |
Weight Kg/km | 45.0 | |
Outside Dia. mm | Φ7.0±0.2 | |
Outer Sheath | material | LSZH | YD/T 1113-2001 |
color | BLACK | |
thickness | 1mm | |
Tight buffer | material | FRP | |
Dia. mm | Φ1.0±0.1 | |
| Quantity(pcs) | 2 | |
Sheath Dia. | Φ2±0.1mm | |
Sheath Material & Color | LSZH & yellow | |
Reinforced core | aramid fiber | |
Mark Unit | Differ A,B,C and D fiber within 10mm | GB/T 6995.2 |
Fiber core | Fiber Type | G.652D | |
sheath color | white | |
Sheath material | LSZH | |
Out-Dia fiber for Tight layer | 0.90±0.05 mm | |
Fiber specification | 9/125(G652D) | |
Allowable Tension | Short term ≥500N | |
Long term ≥300N | |
inflaming retarding Class | Confirm to IEC60332-3C | |
Mini Bending radius | 10D | |
Fiber Cable Printing | Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date | |
Working life | ≥25years | |
*all materials confirm to RoHS
Look forward to your inquiry about our Outdoor PDLC IP67 PDLC to DLC ST FC single mode armored OS2 sfp Fiber Optic CPRI cable patch cord.
