Outdoor Fiber Patch Cable For Huawei/ZTE

Outdoor Waterproof FTTA Fiber Optic Patch Cord LSZH Jacket PDLC-DLC

Name: Outdoor Waterproof FTTA Fiber Optic Patch Cord LSZH Jacket PDLC-DLC
Brand: SOGOO
SKU: 102840
Price: 34.29 USD
Availability: InStock

In Stock. SKU.102840

$ 34.29

Mode* Single-mode: Single-mode; Multi-mode

Length* 5m: 5m; 10m; 20m; 30m; 40m; 50m; 60m; 70m; 80m; 100m; 110m; 120m; 150mm; 200m; 300m

Quantity:

piece(s)

( Min. Order 100 )

Shipping:

$ 2,198.37

to United States Change

Estimated delivery time : 0-27 working days. See details

Total Price:

$ 3,429 ~~$ 3,429~~

Shipping calculated at checkout.

Weight:

1.00 KG

Package:

1000.00cm*1000.00cm*1000.00cm

Returns:

Read details

Add to Wish list

You May Also Like

Description
Specification
Download
Customer Reviews
Questions & Answers

Different length will be different price, kindly contact us for detail price and leadtime.

SOGOO TECHNOLOGY CO., LTD

Mob/Wechat: +86-150-1946-5365

Whatsapp Business: +852 66425118

E-mail: sales@sogootech.com

Website: www.sogootech.com

www.telecomscable.com

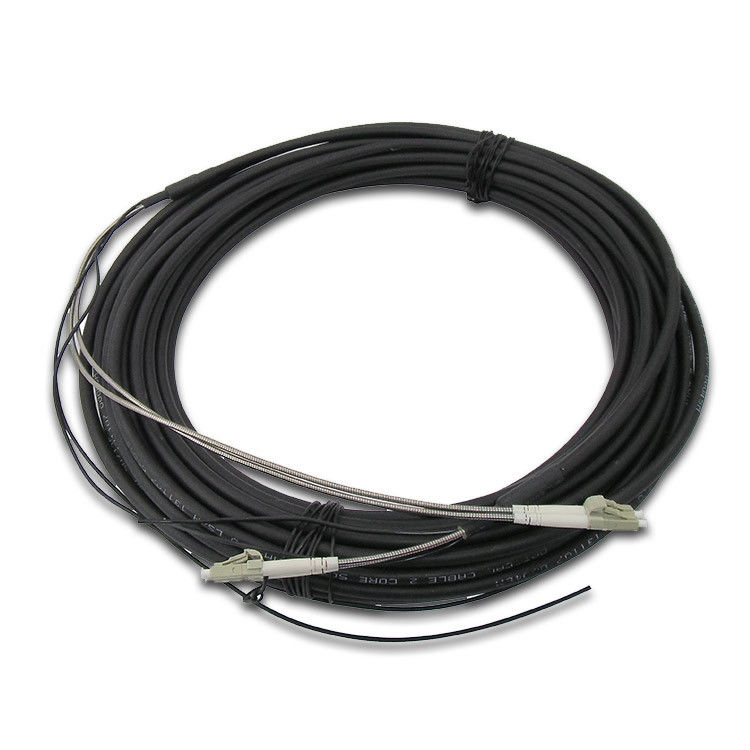

Outdoor Waterproof FTTA Fiber Optic Patch Cord LSZH Jacket PDLC-DLC

Outdoor Waterproof FTTA Fiber Optic Patch Cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm diameter, with water blocking aramid yarns and UV resistant black out jacket. DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.

Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 5m, 10m, 20m, 30m, 40m, 50m, 70m, 100m, 150m, 200m... With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.

Item		Description	Standard
Cable Model		GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
Number Optic-cable Core		2
Weight Kg/km		45.0
Outside Dia. mm		Φ7.0±0.2
Outer Sheath	material	LSZH	YD/T 1113-2001
	color	BLACK
	thickness	1mm
Tight buffer	material	FRP
Tight buffer	Dia. mm	Φ1.0±0.1
Subunit	Quantity(pcs)	2
	Sheath Dia.	Φ2±0.1mm
	Sheath Material & Color	LSZH & yellow
	Reinforced core	aramid fiber
	Mark Unit	Differ A,B,C and D fiber within 10mm	GB/T 6995.2
Fiber core	Fiber Type	G.652D
	sheath color	white
	Sheath material	LSZH
	Out-Dia fiber for Tight layer	0.90±0.05 mm
	Fiber specification	9/125(G652D)
Allowable Tension		Short term ≥500N
Allowable Tension		Long term ≥300N
inflaming retarding Class		Confirm to IEC60332-3C
Mini Bending radius		10D
Fiber Cable Printing		Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
Working life		≥25years

*all materials confirm to RoHS

Features

* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

Look forward to your inquiry about our Outdoor Waterproof LSZH Jacket PDLC-DLC FTTA Fiber Optic Patch Cord.

Customer Reviews

Write a Review
Average Rating:

based on 0 reviews
0%

0%

0%

0%

0%

All Reviews (0)

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
See All Reviews

No data

Questions & Answers
Ask a Question

No data

Color	Black
Cores	2 cores
Connector	LC
Opotion connector	SC-ST-FC
Armored	Branch
Corrugated Pipe	No, if need, pls check price with sales
Armored Fiber cable	Yes, branch armored
Dia of Fiber cable	φ5.0mm;φ7.0mm
Application	Fiber to the Antenna
Weight	1 kg
Package	1000.00cm1000.00cm1000.00cm

Outdoor Waterproof FTTA Fiber Optic Patch Cord LSZH Jacket PDLC-DLC
