Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com

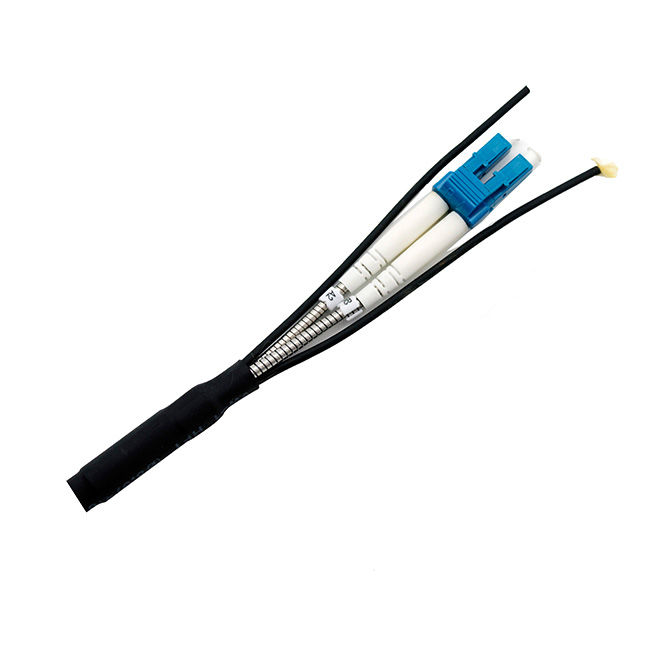

The ODC Connector together with Tactical fiber cables, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.
ODC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Features
Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Item | Description | Standard | |
Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | ||
Number Optic-cable Core | 2 | ||
Weight Kg/km | 45.0 | ||
Outside Dia. mm | Φ7.0±0.2 | ||
Outer Sheath | material | LSZH | YD/T 1113-2001 |
color | BLACK | ||
thickness | 1mm | ||
Tight buffer | material | FRP | |
Dia. mm | Φ1.0±0.1 | ||
Subunit | Quantity(pcs) | 2 | |
Sheath Dia. | Φ2±0.1mm | ||
Sheath Material & Color | LSZH & yellow | ||
Reinforced core | aramid fiber | ||
Mark Unit | Differ A,B,C and D fiber within 10mm | GB/T 6995.2 | |
Fiber core | Fiber Type | G.652D | |
sheath color | white | ||
Sheath material | LSZH | ||
Out-Dia fiber for Tight layer | 0.90±0.05 mm | ||
Fiber specification | 9/125(G652D) | ||
Allowable Tension | Short term ≥500N | ||
Long term ≥300N | |||
inflaming retarding Class | Confirm to IEC60332-3C | ||
Mini Bending radius | 10D | ||
Fiber Cable Printing | Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date | ||
Working life | ≥25years | ||
*all materials confirm to RoHS
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Look forward to your inquiry about our Tactical fiber cables with Waterproof PDLC / ODC connectors , CPRI patch cord for BBU .
