Waterproof PDLC 6 core outdoor Fiber Cord PDLC Fiber Optic Patch Cords / jumper

Waterproof PDLC 6 core outdoor Fiber Cord PDLC Fiber Optic Patch Cords / jumper

In Stock. SKU.140086
$   5.14
Mode* Single-mode
Single-mode
Multi-mode
Quantity:
piece(s)
( Min. Order 100 )
Shipping:
$ 2,198.37
to United States Change
Estimated delivery time : 0-27 working days. See details
Total Price:
$ 514
Shipping calculated at checkout.
Weight:
1.00 KG
Package:
1000.00cm*1000.00cm*1000.00cm

Different length will be different price, kindly contact us for detail price and leadtime.

SOGOO TECHNOLOGY CO., LTD

Mob/Wechat: +86-150-1946-5365

Whatsapp Business: +852 66425118

E-mail: sales@sogootech.com

Website: www.sogootech.com

www.telecomscable.com

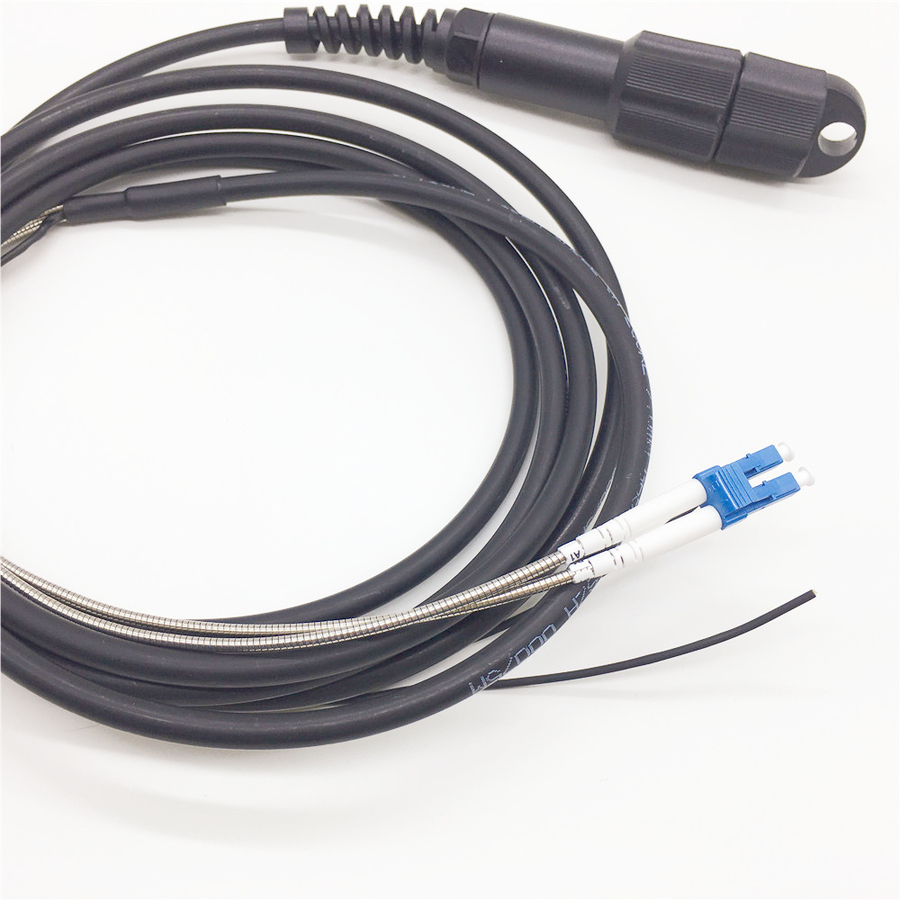

Waterproof PDLC 6 core outdoor Fiber Cord PDLC Fiber Optic Patch Cords / jumper

PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.

Features

Specification:

The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;

1. Standard Duplex LC connector, well connected with standard LC adaptor

2. Available Single mode and Multimode

3. IP67 protection, salt-mist proof, humidity proof, dust proof

4. Low insertion/return loss, steady optical transmitting.

5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Applications

1. Widely used in FTTA & FTTH

2. Used for 3G 4G base station

3. BBU, RRU, RRH, LTE

Cable Parameters:

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature

Long TermShort TermLong TermShort TermDynamicStatic
27.042.32004001100220020D10D-30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;

Connector Specification:

ITEMPARAMETER
Connector typeDLC/UPC . PDLC
Insertion Loss<=0.3db
Return Loss>=50db
Fiber modeSingle mode 9/125
Operating wavelength1310nm, 1550nm
Test wavelength1310nm, 1550nm
Repeatability<=0.1
Interchangeability<=0.2dB
Durability<=0.2dB
Fiber Length1m, 2m.. any length optional.
Length and tolerance10cm
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

Look forward to your inquiry about our Waterproof PDLC 6 core outdoor Fiber Cord PDLC Fiber Optic Patch Cords / jumper.
